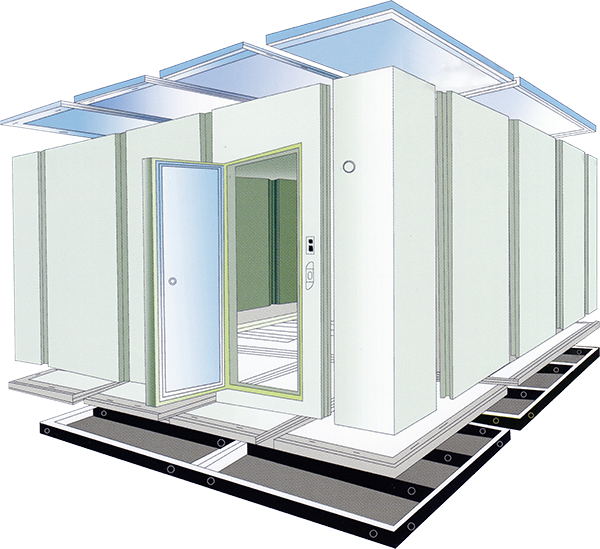

The cold room panel is made of rigid polyurethane foam as thermal insulation material and the color coated steel sheet, stainless steel sheet or embossed aluminum sheet as the covering sheet. It is one-time injected foaming, finished bonding molding with the polyurethane high-pressure injection machine. This process strengthens the strength and rigidity of the cold room panels, and can effectively reduce the heat transfer caused by the temperature difference between the inside and the outside, so as to achieve the maximum efficiency of the freezing and refrigeration system.
It is light in weight, high in strength, good in heat insulation, corrosion resistance, anti-aging, moth proofing, non-toxic, and mildew free. Its superiority will be shown more significantly in low temperature environment.
The cold room panels are connected with the cam locks embedded inside. The whole panels surface is flat after assembling.
The specialized and standardized production are implemented in the cold room panels, which has strong interchangeability. Through different combinations, a variety of specifications and types can be formed for selection: single room, double rooms, suite or multi rooms. It provides convenience for users to make full use of the existing site and building space.
We have the automatic cutting machine, high-pressure foaming machine, automatic laminating machine, CNC cutting machine, folding machine and other advanced equipment, which effectively guarantees product quality and production efficiency.

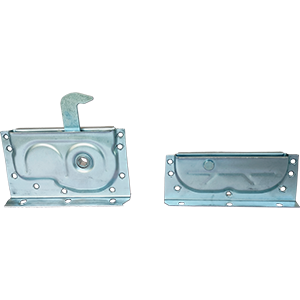

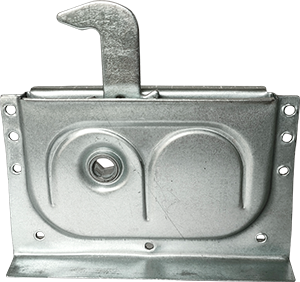

The cam lock is usually embedded in the cold room panel and fixed to the panel’s mold with the adapter holder before foaming.
To assemble a cold room, you just need turn the wrench and then the cold room panels will be connected closely. To expand or remove a cold room, you just need turn the wrench reversely and then the panels will be separated.
The cam lock includes male part and female part, which are made of plastic or steel. It has a good performance in self-locking, strength and service life.
We also provide customized services as per your samples or drawings.
VP100N
VP100X
VP200

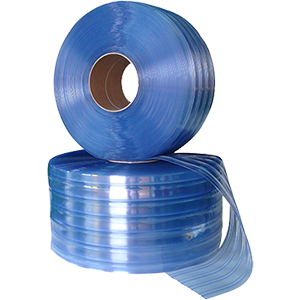

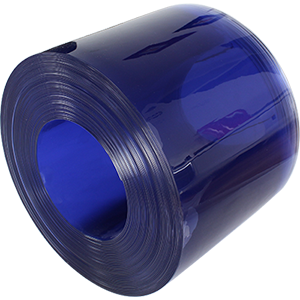

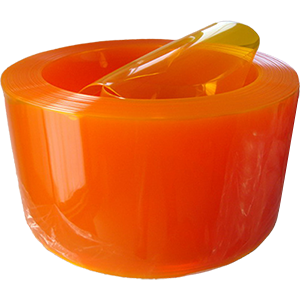

The PVC strip curtain has the characteristics of soft, transparent, dust-proof, fly proof, constant temperature, constant humidity, reducing the exchange of cold and heat, easy to enter and exit, not afraid of collision and easy to clean.
It is widely used in refrigeration, food manufacturing, chemical industry, textile, electronics, instrument, pharmacy, warehouse, hotel, factory, hospital, restaurant, etc.
It has good effect on the insulation of live working place and the blocking of harmful arc light.
Our transparent PVC products are remarkable in the high light transmittance more than 85%. The annual output is up to 2000 tons, based on the strict quality control and the customers’ strong support.
chemical composition: PVC compound based tin
surface: flat, ribbed
type: standard, polar, anti-insect, antistatic, welding, frosted, nylon reinforced, magnetic
working condition: -40℃~+50℃ (polar), -20℃~+50℃ (others)
width: 100~400mm (PVC sheet: 800~1800mm)
thickness: 1.5~5mm (PVC sheet: 1~10mm)
light transmittance: ≥85%
plasticizer: DOP, DOTP (meeting REACH and RoHS), paraffin
◎ High Light Transmittance
◎ Multipurpose
◎ Various Colors & Sizes
◎ Environment-friendly
◎ Food Grade
Standard
Polar
anti-insect
anti-static
welding
frosted
