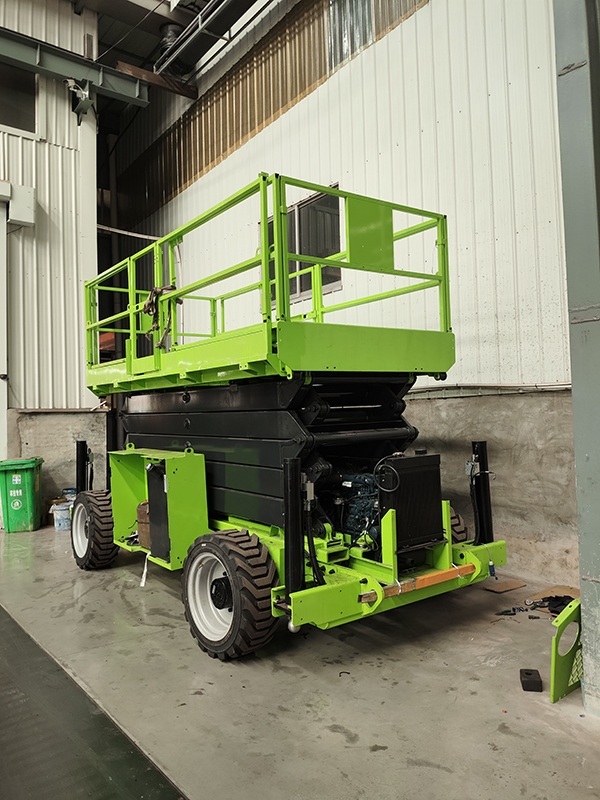

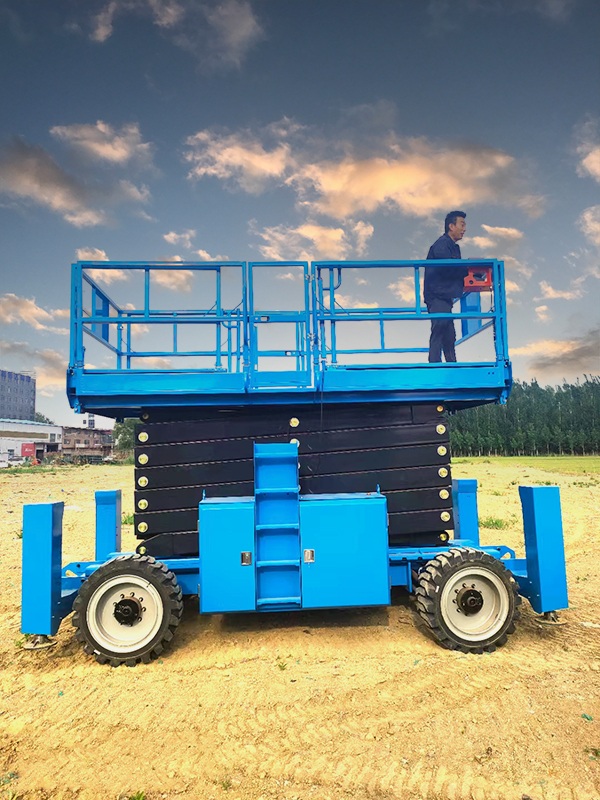

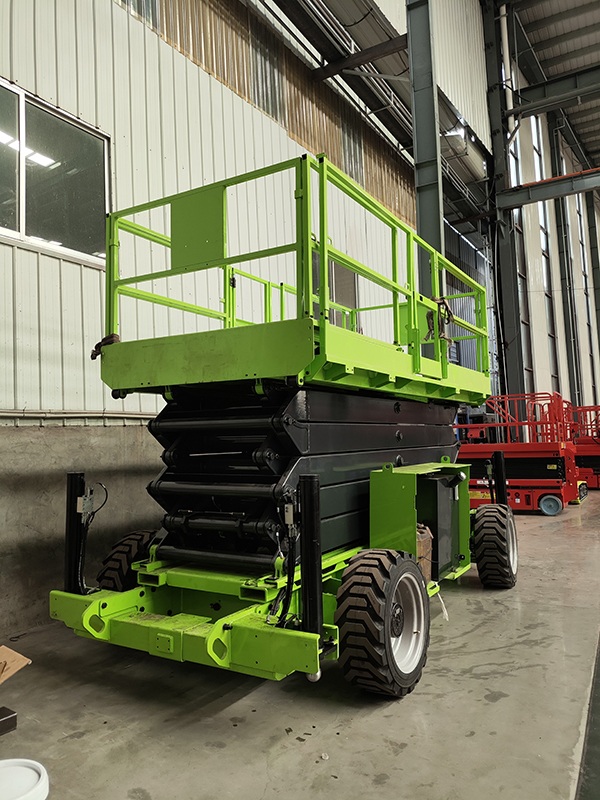

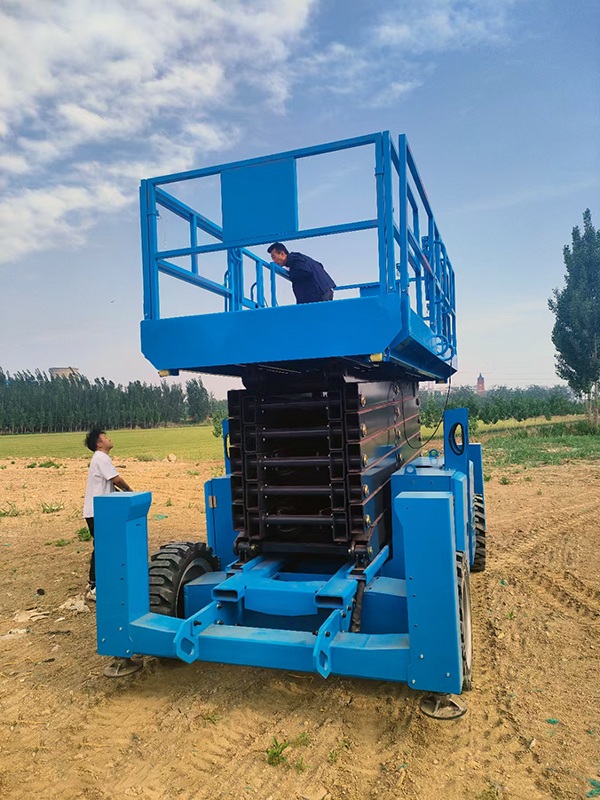

Tip: There are also diesel models available for selection (at the bottom).

Product Overview

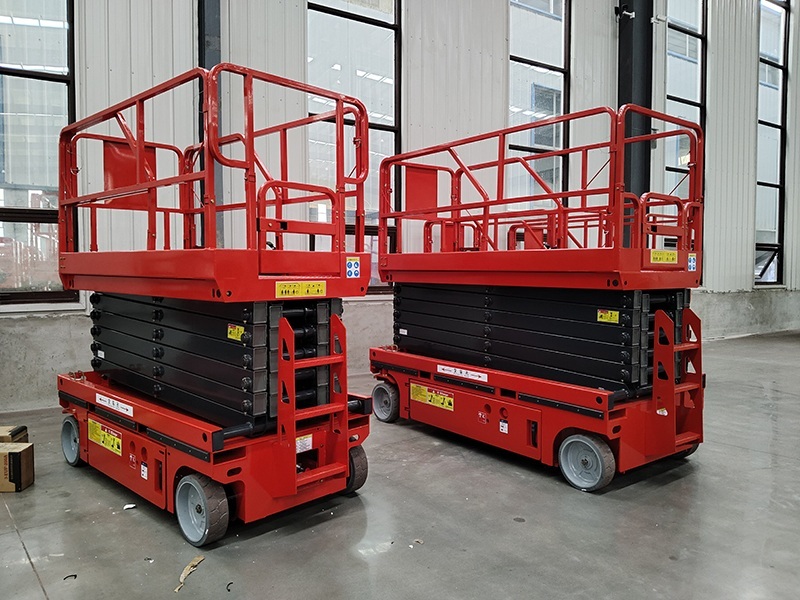

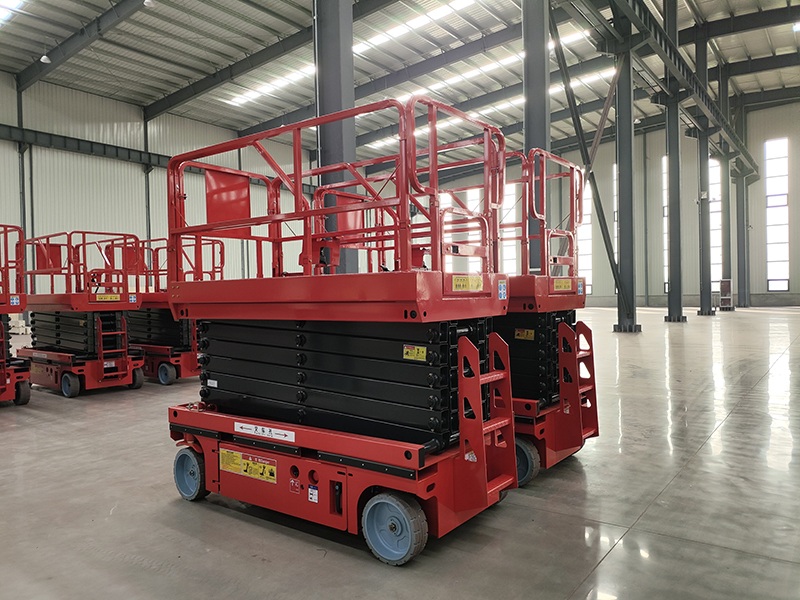

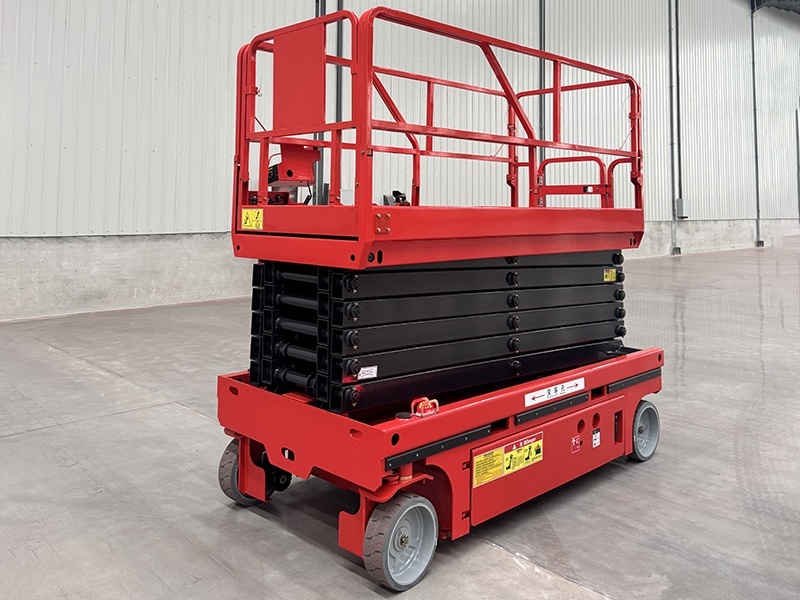

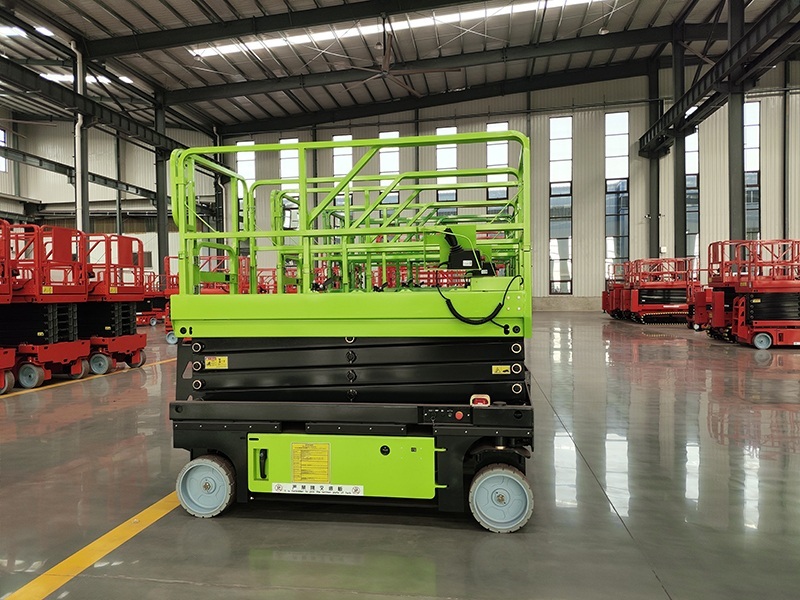

Self-propelled scissor lifting platforms feature automatic walking functionality. Operators only need to control the handle to perform forward, backward, turning, fast/slow walking, and up/down movements.

Built-in battery eliminates the need for external power supply or external traction for various operations.

The self-propelled scissor lifting platform adopts an integrated design, featuring flexible mobility, convenient operation, labor-saving, and force-saving, making aerial work more efficient and rapid. It serves as an ideal high-altitude work equipment for modern enterprises to achieve safe and productive operations.

Automatic Braking System
Emergency Descent System

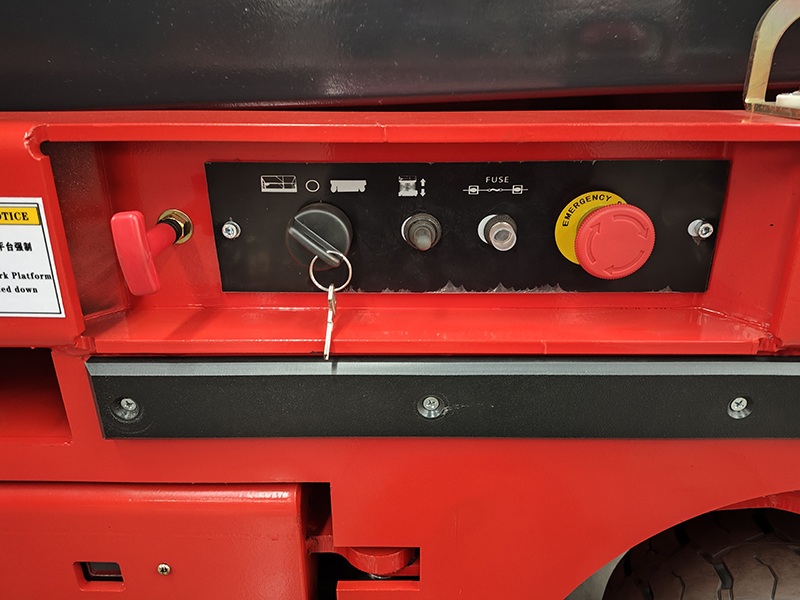

Emergency Stop Button
Fault Diagnosis System
Tilt Protection System
Pipeline Explosion-Proof Valve+Steel Mesh High-Pressure Oil Pipe
Pit Protection System
Charging Protection System

Technical Specifications

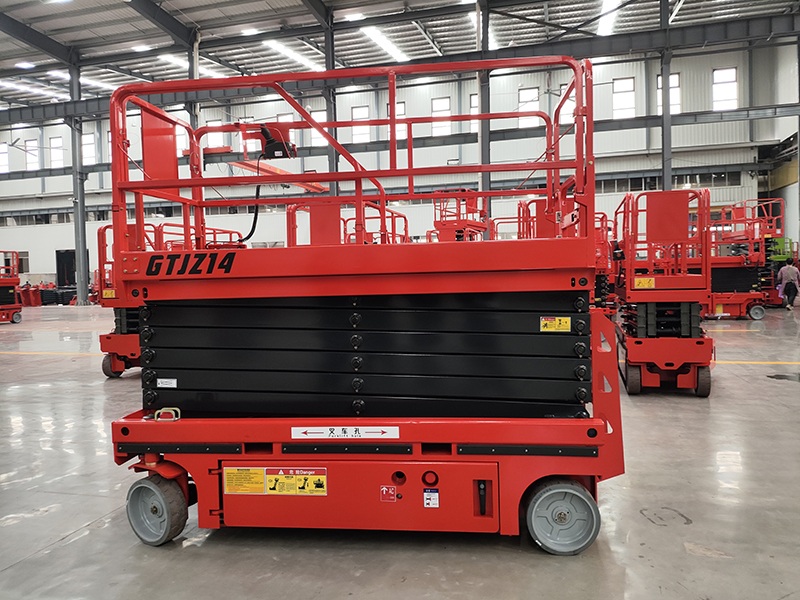

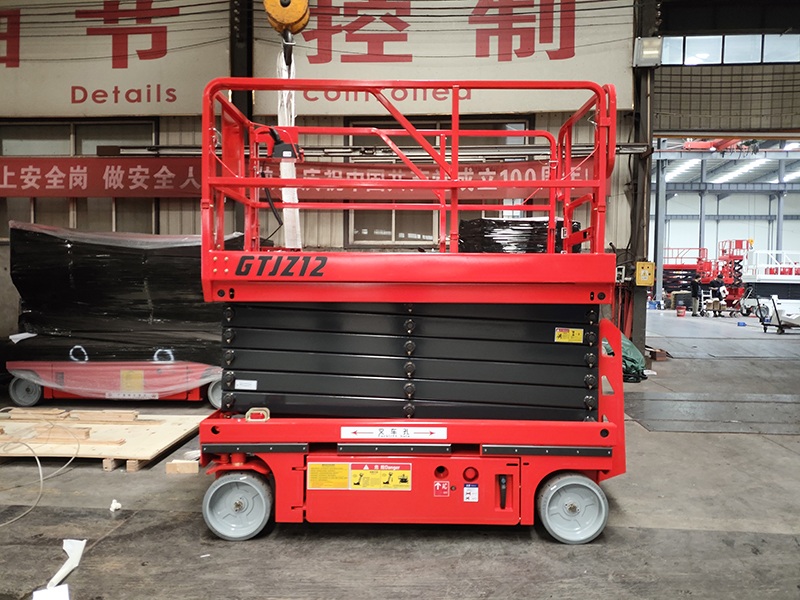

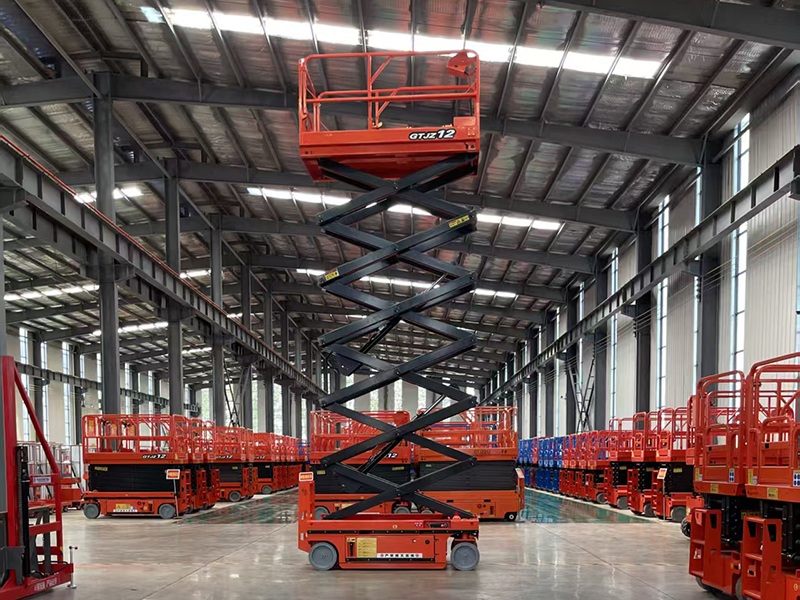

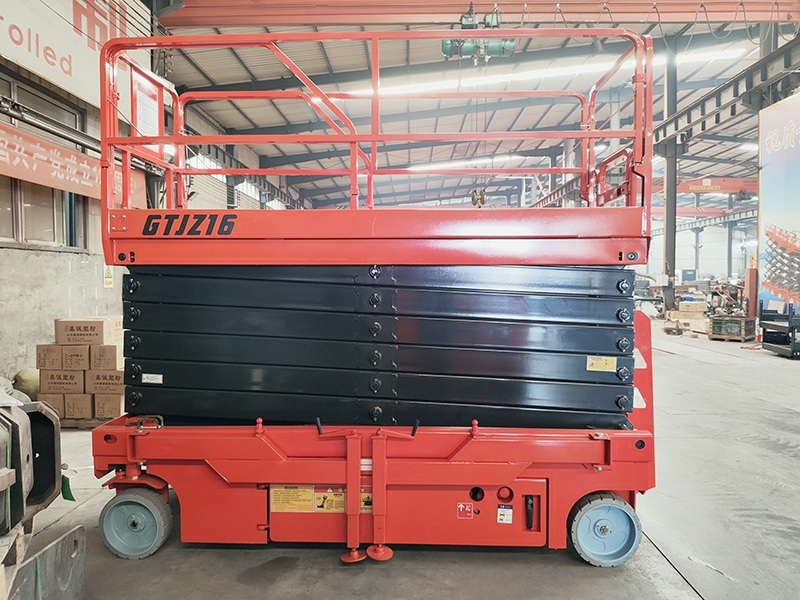

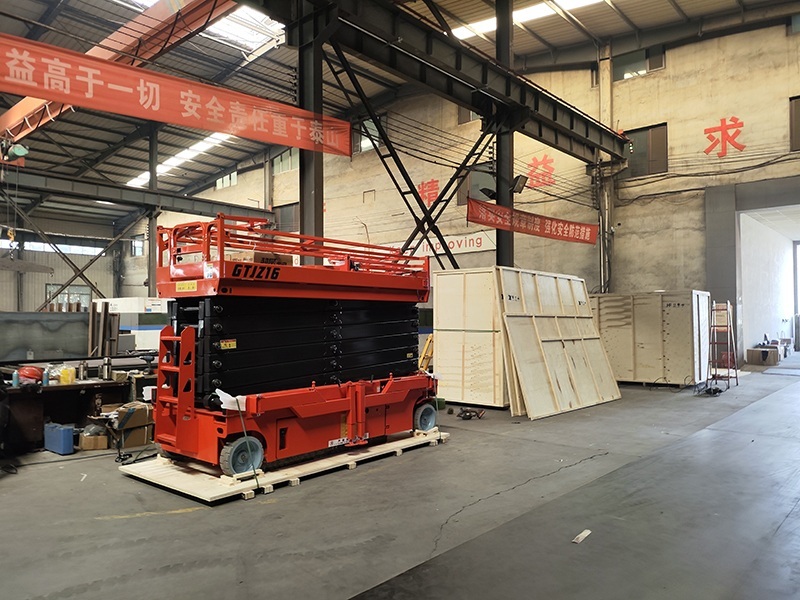

Model	GTJZ-4	GTJZ-6	GTJZ-8	GTJZ-10	GTJZ-12	GTJZ-14	GTJZ-16	GTJZ-18	GTJZ-20
rated working load	230 kg	320 kg	320 kg	320 kg	320 kg	230 kg	200 kg	300 kg	300 kg
rated working load of extended platform	113 kg	113 kg	113 kg	113 kg	113 kg	113 kg	100 kg	/	/
maximum working height	5.9 m	8 m	10 m	12 m	13.8 m	15.8 m	17.8 m	20 m	22 m
maximum platform height	3.9 m	6 m	8 m	10 m	11.8 m	13.8 m	15.8 m	18m	20 m
overall length	1440 mm	2470 mm	2470 mm	2470 mm	2470 mm	2855 mm	3170 mm	3350 mm	3350 mm
overall width	760 mm	115 mm	1150 mm	1150 mm	1150 mm	1320 mm	1550 mm	1750 mm	1750 mm
overall height (fence unfolded)	2030 mm	2220 mm	2320 mm	2430 mm	2550 mm	2580 mm	2870 mm	3350 mm	3620 mm
overall height (fence folded)	1740 mm	1680 mm	1780 mm	1910 mm	2030 mm	2030 mm	2350 mm	2450 mm	2520 mm
dimension of working platform	1290×700 mm	2270×1110 mm	2270×1110 mm	2270×1110 mm	2270×1110 mm	2640×1100 mm	2995×1100 mm	3150×1500 mm	3150×1500 mm
extension dimensions of platform	600 mm	900 mm	900 mm	900 mm	900 mm	900 mm	900 mm	/	/
minimum ground clearance (retracted)	60 mm	100 mm	100 mm	100 mm	100 mm	100 mm	100 mm	100 mm	100 mm
minimum ground clearance (lifted)	15 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm
wheelbase	1050 mm	1850 mm	1850 mm	1850 mm	1850 mm	2220 mm	2570 mm	2660 mm	2660 mm

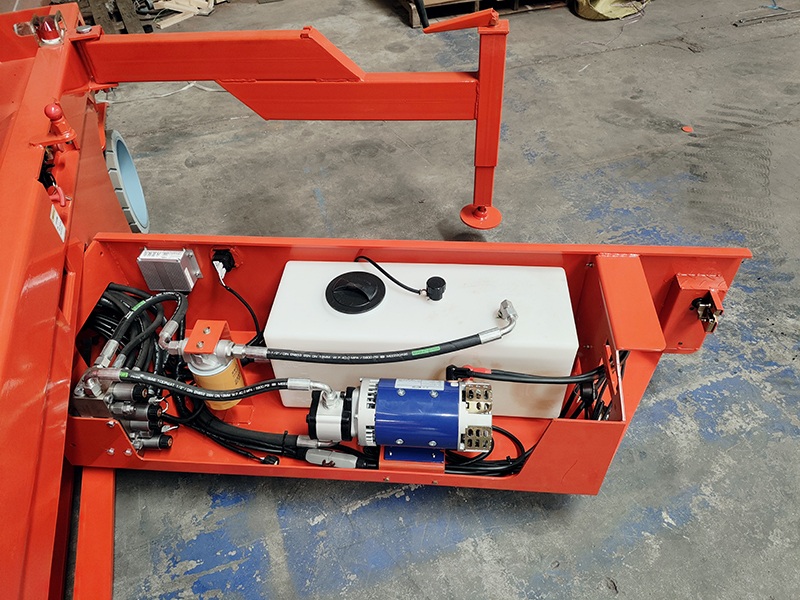

lift motor	DC 24V/1.2kw	DC 24V/3.3kw	DC 24V/4.0kw	DC 24V/4.5kw	DC 24V/4.5kw	DC 24V/4.5kw	DC 24V/4.5kw	DC 48V/4kw	DC 48V/4kw
operating speed (retracted)	4.0 km/h	3.5 km/h	3.5 km/h	3.5 km/h	3.5 km/h	3.5 km/h	3.5 km/h	3.5 km/h	3.5 km/h
operating speed (lifted)	0.5 km/h	0.8 km/h	0.8 km/h	0.8 km/h	0.8 km/h	0.8 km/h	/	/	/
ascending/lowering speed	4-6 m/min	5-6 m/min	5-6 m/min	5-6 m/min	5-6 m/min	3-5 m/min	3-5 m/min	4 m/min	4 m/min

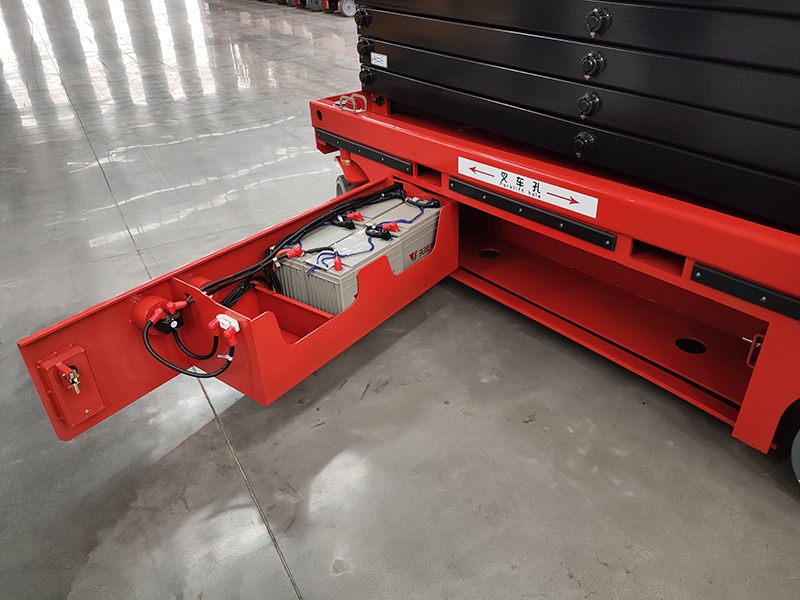

battery	2×12 V/80 Ah	4×6 V/203 Ah	4×6 V/203 Ah	4×6 V/203 Ah	4×6 V/203 Ah	4×12 V/240 Ah	4×12 V/280 Ah	8×12 V/280 Ah	8×12 V/280 Ah
charger	24V/30A	24V/30A	24V/30A	24V/30A	24V/30A	24V/30A	24V/30A	48V/50A	48V/50A
maximum climbing capacity	25％	25％	25％	25％	25％	25％	25％	25％	25％
maximum permissible working angle	2°~3°	2°~3°	2°~3°	1.5°~3°	1.5°~3°	1.5°~3°	1.5°~3°	1.5°~3°	1.5°~3°
tire	230×80 mm	381×127 mm	381×127 mm	381×127 mm	381×127 mm	381×127 mm	381×127 mm	381×127 mm	381×127 mm
overall weight	800 kg	2000 kg	2350 kg	2600 kg	2900 kg	3370 kg	4200 kg	6300 kg	7200 kg
